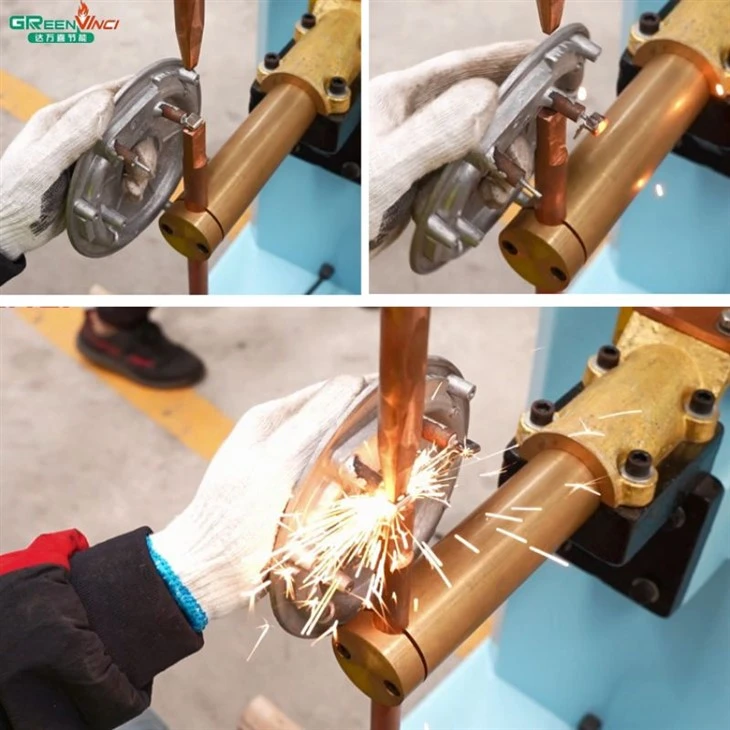

DN-25kw Spot Welding Machine

Products Description

TheDN-25kw Spot Welding Machinemuchina wepamusoro{{0}yesimba rekudzivirira nzvimbo wewelding wakagadzirirwa chaizvo maindasitiri mapepa esimbi welding. Ichishandisa tekinoroji inoshanda nesimba-inochengetedza, inopa simba reweld, mhedzisiro inoyevedza, uye kushanda kuri nyore. Inoshandiswa zvakanyanya mumaindasitiri akadai sekugadzira mota, Hardware nemidziyo, uye sheet simbi kugadzirisa.

Product parameters

Muenzaniso:	YDN 25
Input	AC 380 V( 2 PH)
Simba	25 ( KW)
Load rate	0.25
Pressure	5 - 8 (Mpa)
Upper electrode stroks	50 (mm)
Lower electrode sitiroko	0 (mm)
Kutonhora	Natural kutonhora
Net uremu	165 ( KG)
Volume	93 * 55 * 130
Electrode yekuwedzera kureba:	400 (mm)
Distance pakati pepamusoro nepasi electrode:	250 (mm)

Main Features

1. TheDN-25kw Spot Welding MachineMuchina wekudzivirira welding, unodzorwa nemicrocomputer.

2. The welding musimboti kushandisa kupisa kupisa uye hukuru hukuru hwepurasitiki deformation simba yewelding nzvimbo pachayo kuti iite simbi chisungo pedyo neretiti kureba pakati maatomu maviri esimbi akapatsanurwa uye kuratidzwa, uye kubudisa huwandu hwakakwana hwezviyo zvakajairika panzvimbo yejoints kuti uwane solder joint, weld, kana butt joint.

3. Ikozvino ukuru uye nguva yewelding inogona kugadziriswa, uye kushanda kuri nyore.

General troubleshooting

Phenomenon	Chikonzero	Kubata Nzira
Hapana welding ikozvino inobuda kana tsoka pedal yakadzvanywa	1. Switch yemagetsi haina kuvhurwa 2. Kusabatana zvakanaka kwechibatiso chekufamba (copper screw) 3. Welding / cheki seam iri mucheki mamiriro	1. Batidza bhatani remagetsi 2. Deredza chinhambwe pakati pema electrode maviri emhangura uye gadzirisa kudzvanywa kwechirimo kuti uvhure chinja chekufamba 3. Isa iyo welding / cheki seam kune welding mamiriro
Welding current haigone kutemwa yega	1. Thyristor yakakuvadzwa 2. Controller kusashanda	1. Tsiva thyristor 2. Tarisa uye gadzirisa mutongi
Kubuda kwazvino kusina kugadzikana	1. Grid voltage fluctuation inodarika ±10% 2. Kusagadzikana kwe electrode pressure 3. Kusagona kubata kwekutanga switch (copper screw)	1. Mirira kusvikira grid voltage fluctuation iri mukati ± 10% isati yashanda 2. Rongedza kumanikidzwa kwechirimo 3. Chenesa nzvimbo yekubata ye switch (copper screw)
Metal spatter	1. Kusakwana kwe electrode pressure 2. Yakanyanya oxidation ye electrode contact 3. Yakanyanya oxidation ye workpiece pamusoro	1. Rongedza kumanikidzwa kwechirimo 2. Gadzirisa electrode 3. Chenesa workpiece

Welding Machine Installation

1. Iyo DN-25kw Spot Welding Machine inofanira kuiswa munzvimbo isina-inotenuka, yakavharirwa nemasuruu eanchor, uye kuiswa pasi ne 10mm² copper core wire.

2. Kuiswa Kwemagetsi: Muchina uyu unoshandisa-pase 380V kuisa maviri. Sarudza tambo dzine madhayamita ewaya akasiyana uye macircuit breakers zvichienderana nesimba remuchina welding.

10kVA-25kVA: Shandisa 6-16mm² copper core cables uye 40-100A circuit breaker.

25kVA-63kVA: Shandisa 16-25mm² copper core cables uye 100-200A circuit breaker.

Zvinodiwa: Ita shuwa kuti nzungu dzinochengetedza tambo dzakasimbiswa zvakasimba kudzivirira sparks uye overheating. Iyo yedunhu inotyora inofanira kuiswa ingangoita 150mm pamusoro pevhu uye inokwana 3m kubva kune anoshanda. Iyo welding muchina wekuisa tambo inofanirwa kubatana kune terminal yakanyorwa "INPUT" pabhodhi remagetsi mukati memuchina.

3. Pressure Adjustment for Pedal-Mounted Machines: Chitubu chepressure chakaiswa pa vertical foot pressure lever mukati memuchina we welding. Kugadzirisa kudzvanywa kwechitubu kunogadzirisa welding pressure. Iyo yekutanga switch inoiswawo pane iyi vertical pressure lever.

4. Kubatidza: Usati wabatidza, tarisa kuti zvikamu zvese zvakabatana nemazvo. Wobva wadzima switch yemhepo uye switch yemagetsi emutongi. Dzima switch yemhepo panguva yakawedzera kudzika.
