Automatic Turning Machine

Iyo otomatiki Turning Machine inonyanya kushandiswa kushandura ric cooker yekudziya ndiro uye fan yekuvharisa lathing. Yakakwira dhigirii ye otomatiki, yakakwira kugadzirwa kwakanaka, kusvika kumasekonzi masere kupedzisa chigadzirwa. Kunze kwekunge isina chinhu clamping, mamwe ese ekugadzirisa maitiro anogona kupedzwa nematurusi emuchina. Hydraulic disc machining inoderedza kushanda kweanoshanda uye inovandudza mamiriro ekushanda.

The Automatic Turning Machine chishandiso chepamusoro-chinoshanda otomatiki kana kuti semi-chishandiso chemuchina. Zvichienzaniswa neakajairika maturusi emuchina, ine hunhu hwekuchinjika kwepamusoro, kugadzirwa kwepamusoro, kurongeka kwepamusoro, kugadzikana uye kutendeseka kugadzirisa, etc. Inogona kuderedza kusimba kwevashandi uye kubatsira kuvandudza mwero wekutonga kwekugadzira.

Parizvino, huwandu hwemashandisirwo emidziyo yemuchina hwakakura kwazvo, asi muchina wedu welathe wakanyatsokodzera kugadzirisa madhisiki ekudziya. Kana ichishandiswa kugadzira mahwendefa ekudziya, inoshanda uye inogadzira kupfuura CNC lathes, chero paine michina muindasitiri, otomatiki Turning Machine maturusi achashandiswa.

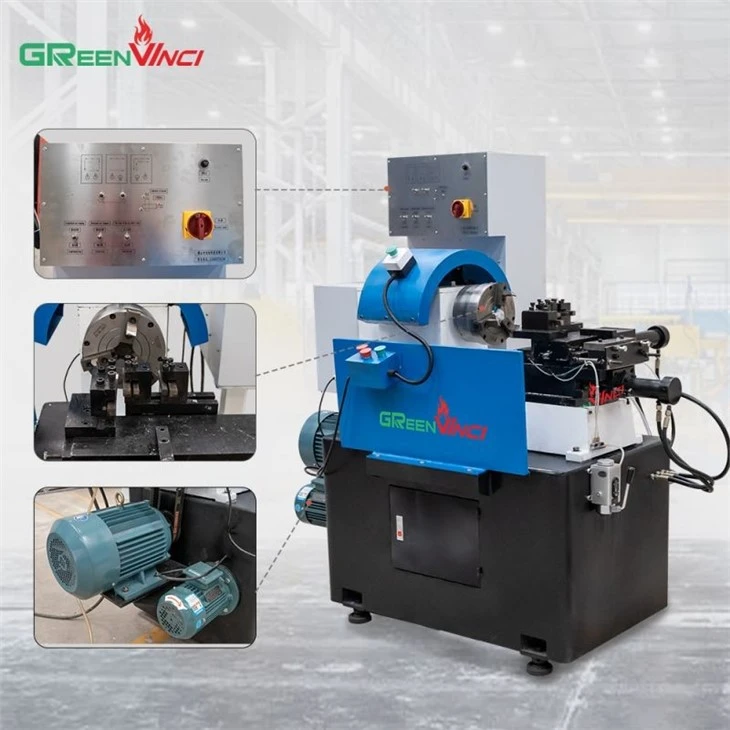

Ichi chinotevera chimiro cheiyi Automatic Turning Machine

1. Main power switch

2. Vatatu-jaw chuck release switch

3. Safety cover 4. Emergency stop

5. Dzorera chivharo chekuchengetedza 6. Tanga

7. Chuck clamp

8. Zadza 68# hydraulic mafuta tank

9. Platen Curvature Adjustment
10. Weight Depth Adjustment
11. Carriage Lubricator

12. Frequency conversion brake switch
13. Pneumatic pressure regulator
14. 8 masendimita mutsara wemhepo
15. 380V tambo yemagetsi

16. Gadzirisa curvature yepamusoro ne screw
17. Gadzirisa curvature yepamusoro ne screw
18. Screw kugadzirisa kwekunze kwedhayamita ye disc

19. Mubatiri wemidziyo 1: Kutenderera kwechiso, kutenderera kureba
20. Mubati wemidziyo 2: Kutenderedza mukati, kutenderedza
21. Chibatiso chetatu: Kutenderera kwekunze, kutenderedza

22. The headstock stop switch inodzora lathe spindle. Kuidzvanya kumusoro kunobvumira kutenderera kwakajairika, uku kuitsikirira pasi kunomisa chirungiso.
23. Iyo mold run stop switch: Kuidzvanya inodzosera lathe kunzvimbo yayo yepakutanga mushure mekutenderera kwepasi kwapera. Kuidzvanya pasi kunomisa lathe pakupera kwedhayamita rekunze relathe. Kuitsikirira kudzoka panzvimbo yekutanga kunoda kumira kwechimbichimbi, sezvakaratidzwa mumufananidzo 4.
24. The longitudinal stop switch: Kuidzvanya kumusoro kunobvumira dhayamita yemukati nekunze kutendeuka kuti ienderere mberi. Kuitsikirira pasi kunomisa dhayamita yemukati neyekunze kuti isatendeuke. Kuitsikirira kudzoka panzvimbo yekutanga kunoda kumira kwechimbichimbi, sezvakaratidzwa mumufananidzo 4.
25. Kudzvanya Figure 23 uye 24 inobvumira yakajairika yakatwasuka uye yakatwasuka kutendeuka. Kudzvanya Mufananidzo 25 kunobvumira iyo longitudinal kutendeuka kune yakasetwa chinzvimbo uye yobva yabuda otomatiki (yekugadzirisa madhayamita emukati nekunze). Kudzvanya Mufananidzo 26 kunobvumira kutendeuka kwelongitudinal kubatanidza nzvimbo yakachinjika yekutangira (panotangira nzvimbo yelathe) uye wozodzokera painotangira mushure mekunge wasvika panoperera lathe surface. Kudzvanya chinomira chekukurumidzira, sezvakaratidzwa muMufananidzo 4, inodzorera muchina panzvimbo yawo yepakutanga.



27. Hydraulic mafuta pressure switch, mafuta ekumanikidza huwandu: 25-28.

28. Surface kutendeuka kumhanya kudzora vharafu (yemudziyo zviyo ukobvu).

29. Turning speed control valve (yekugadzirisa chigadziro chekupinda kukurumidza).

Yakakwira℃re otomatiki, kuve nechokwadi chepamusoro kugadzirwa kwekubudirira.

Yakanyatsogadzirirwa ndege yakakosha, inosimudzira kurongeka kwepamusoro kweplate yekudziya.

Kushanda kuri nyore uye kushoma kwehunyanzvi zvinodiwa kune vanoshanda.
